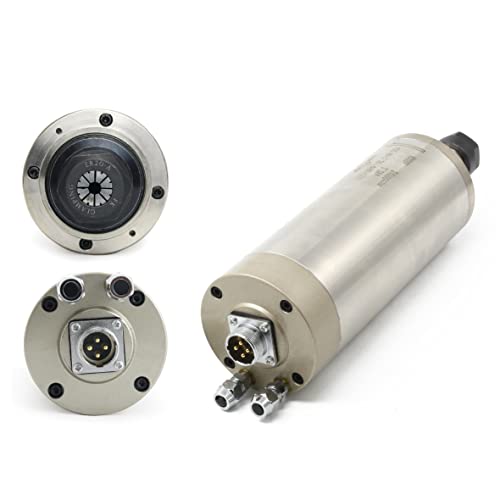

RATTMMOTOR 2.2KW 110V Water Cooled Spindle Motor 80mm, 24000RPM High
Speed Spindle Motor ER20 Collet 15A 400HZ for CNC Router Engraver Milling MachineUSD $162.00
Condition : NEW
Free Shipping
{{variant_type_name}} :
Notify me when the price drops
We will email you if we find a lower price on this product!
- ✅【Simple Introduction】This is a 110V-2.2KW water-cooled 15A Φ 80x213mm spindle motor come with a ER20 nut and collet. Frequency is 400HZ, 0.003--0.005 accuracy and runout off is less than 0.01mm. It is mainly suitable for non-metallic engraving,such as wood carving/engraving machine, advertisement engraving machine,CNC machine.
- ✅【How to Connect The Spindle Motor】The spindle motor's aviation plug marked with number 1, 2, 3, 4. Number 1, 2, 3 port are connected with inverter's port U, V, W respectively. Number 4 is the ground wire, no wiring is required.
- ✅【Speed of The Spindle Motor】0-24000RPM. Because it is a high-speed spindle motor, the spindle speed must not be lower than 9000 rpm during the use of the spindle. It should be noted that the spindle only can rotate clockwise but not counterclockwise.
- ✅【High Quality】ISO9001 quality certifications which means this item is the top quality item. In extremely high speed working environment, ordinary bearing can not ensure this high rotate speed for using for long time.
- ✅【Advantages of The Spindle】The design of the dust-proof cover on the front of the spindle and the use of stainless steel body can effectively prevent dust, water and rust.
- Color: 2.2KW 110V
- Size: 2.2KW 110V
- Weight: 10.802650838
